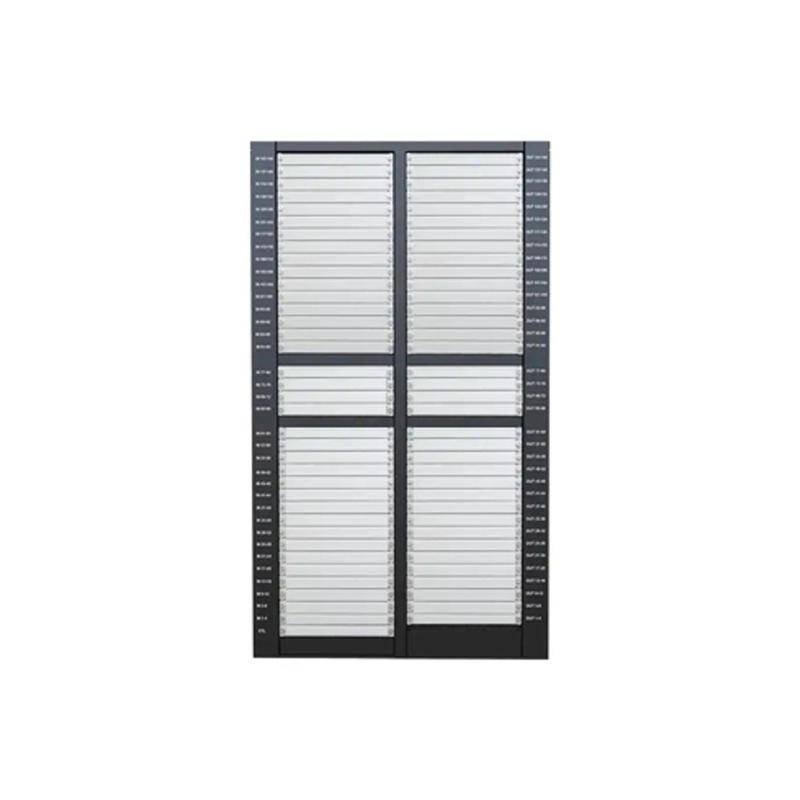

ONESIA Video Matrix Controller 24U (HDMI 120 In 120 Out)

Deskripsi : Feature Images Splicing, Matrix Switch, Input Channels support HDMI/DVI/SDI Board Card, Output Channels support DVI/HDMI Board Card, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display of Static Image), Automatic Detection, Support H.264
Spesifikasi Teknis : 24U Chassis Video Processor Included HDMI 120ports IN & 120ports OUT, Maximum Input 144ports (36Slots), Maximum Output 144ports (36Slots), Network Control, RS232 Communication
Keterangan Lainnya : Power Consumption 350W, Operating Temp -10 ~ 50°C, Relative Humidity 5 - 95 No Condensation

Lokasi Pembelian Lokasi Pembelian

ONESIA Video Matrix Controller 24U (HDMI 120 In 120 Out)

Video Matrix Controller 24U (HDMI 120 In 120 Out) adalah perangkat canggih untuk distribusi sinyal video yang mendukung 120 input dan 120 output HDMI. Dirancang dengan kemampuan splicing gambar dan matrix switch, perangkat ini memungkinkan pengguna untuk mengelola berbagai saluran input/output seperti HDMI, DVI, dan SDI dengan resolusi tinggi. Fitur tambahan termasuk mode peta untuk tampilan gambar overlay ultra-tinggi, deteksi otomatis, dan dukungan untuk format H.264. Ideal untuk aplikasi besar seperti ruang kontrol, penyiaran, dan instalasi multimedia yang membutuhkan pengelolaan sinyal video yang handal dan fleksibel.

Spesifikasi

SKU

· VMX24-HAAAA-0000

Brand

· ONESIA

Kategori

· AV Switch

Deskripsi

· Feature Images Splicing, Matrix Switch, Input Channels support HDMI/DVI/SDI Board Card, Output Channels support DVI/HDMI Board Card, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display of Static Image), Automatic Detection, Support H.264

Spesifikasi Teknis

· 24U Chassis Video Processor Included HDMI 120ports IN & 120ports OUT, Maximum Input 144ports (36Slots), Maximum Output 144ports (36Slots), Network Control, RS232 Communication

Keterangan Lainnya

· Power Consumption 350W, Operating Temp -10 ~ 50°C, Relative Humidity 5 - 95 No Condensation

Chassis

· 24U

Input Channels

· 120 HDMI Ports

Output Channels

· 120 HDMI Ports

Maximum Input Ports

· 144 Ports (36 Slots)

Maximum Output Ports

· 144 Ports (36 Slots)

Network Control

· Yes

RS232 Communication

· Yes

Supported Input Channels

· HDMI, DVI, SDI Board Card

Supported Output Channels

· HDMI, DVI Board Card

Feature

· Splicing, Matrix Switch, Image Segmentation, Map Mode (Ultra High Resolution Overlay Display), Automatic Detection, H.264 Support

Power Consumption

· 350W

Operating Temperature

· -10 ~ 50°C

Relative Humidity

· 5 - 95% (No Condensation)
